Home Products Four-Station Thermoforming Machine

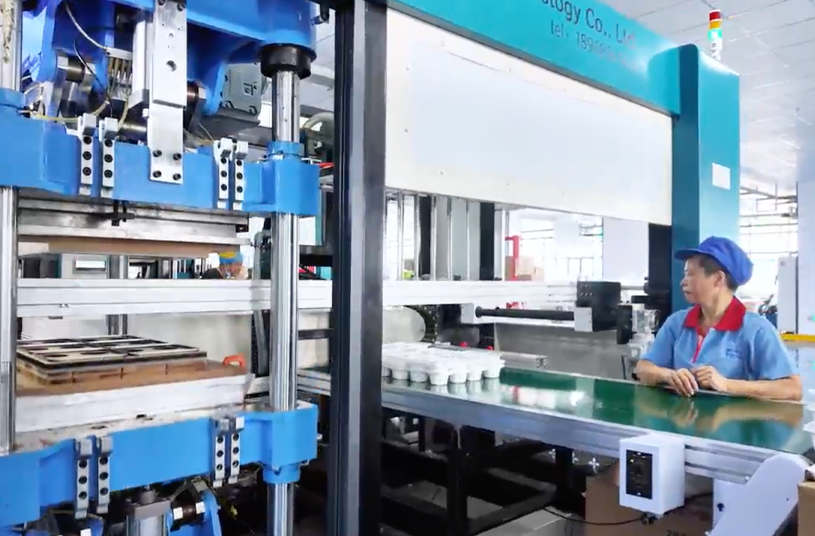

Four-Station Thermoforming Machine

Features: This integrated system combines heating, forming, punching, blanking, stacking, and scrap collection into a single operation, significantly boosting production efficiency and product consistency. Extensive application scenarios: This device is an ideal choice for producing various food packaging containers (such as disposable lunch boxes, fruit preservation boxes, egg trays, cup lids, etc.) and daily plastic products, with broad applicability in the catering, fresh food distribution, and household goods manufacturing industries. Its stable and reliable performance is particularly suitable for large-scale, continuous production requirements. Advantages: Combines high production capacity with stable operational characteristics. The main beam structure has a long service life and is provided with a five-year warranty; the mold platform is durable and enjoys a two-year warranty period; the servo system offers enhanced power and longer service life; the temperature control system exhibits excellent stability and high precision.
Download
Description Application Specifications Features Product Comparison Machine Details Video

Description

Features: This integrated system combines heating, forming, punching, blanking, stacking, and scrap collection into a single operation, significantly boosting production efficiency and product consistency. Extensive application scenarios: This device is an ideal choice for producing various food packaging containers (such as disposable lunch boxes, fruit preservation boxes, egg trays, cup lids, etc.) and daily plastic products, with broad applicability in the catering, fresh food distribution, and household goods manufacturing industries. Its stable and reliable performance is particularly suitable for large-scale, continuous production requirements.
Advantages: Combines high production capacity with stable operational characteristics. The main beam structure has a long service life and is provided with a five-year warranty; the mold platform is durable and enjoys a two-year warranty period; the servo system offers enhanced power and longer service life; the temperature control system exhibits excellent stability and high precision.

Application

  • Cup
  • lunch box
  • Plastic box
  • Medicine shell

Specifications

Model CRRH5140/4 CRRH7560/4 CRRH8260/4
Number of workstations 4
maximum die size 510*400 750*600 820*600
maximum forming depth 110mm 120mm 140mm
Sheet thickness 0.2-2mm 0.2-2mm 0.2-2mm
maximum forming speed 35 times per minute 35 times per minute 35 times per minute
pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air consumption 1.5m³ per minute 2.5m³ per minute 3.7m³ per minute
cooling method hydrocooling hydrocooling hydrocooling
Maximum sheet width 550mm 780mm 850mm
Applicable materials PET, PS, PP, PLA, PVC, etc.
power rating 110kw 170kw 246kw
heating power 75kw 120kw 171kw
Actual power (excluding air compressors and chillers) 10-30kw 15-60kw

Features

This integrated system combines heating, forming, punching, blanking, stacking, and scrap collection into a single operation, significantly boosting production efficiency and product consistency.

Product Comparison

  • class
    Cuanron Machinery
    Other manufacturers
  • Driving structure
    Chuangrong: Featuring an integrated eccentric arm drive system, this equipment delivers faster production
    Procurement of eccentric wheel drive structure with thin material
  • Form drawing
    Cuanron: For the molding process, we are equipped with a 5.5 kW servo motor (Inovance/Siemens).
    Low-quality accessories
  • Heating element
    Cuanron: We utilize German-imported Elstern heating elements to reduce electricity costs during the production process. The heating plate features a double-layer stainless steel structure with built-in thermal insulation cotton.
    Use a single-layer sheet metal housing with a standard brand heating element.
  • Mold cutting with heating function
    Cuanron: The cutting workstation is equipped with a heating function to ensure the mold remains undamaged during prolonged production.
    Heating is not configured
  • oil-way
    Cuanron: Features a progressive oil circuit distributor with built-in alarm device
    uses traditional oil circuit distributor
  • air cylinder
    Chong Rong: We Use AirTac for Stable Performance
    Made in China cylinder

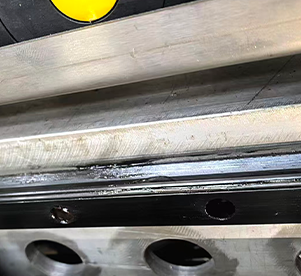

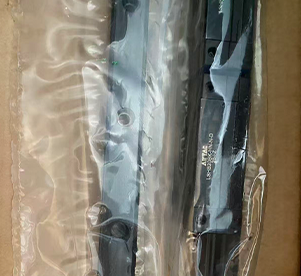

  • linear guide rail
    Cuanron: We utilize ShangYin linear guides for enhanced product stability
    Made in China Guide Rail and Slider

Machine Details

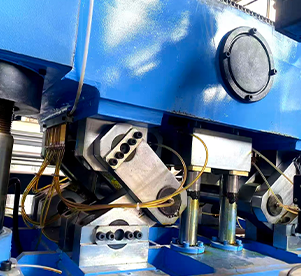

  • Driving structure
    ChuangRong：With the drive mode of the built-in eccentric arm, the machine will run faster and more stable during production.
  • Forming stretching

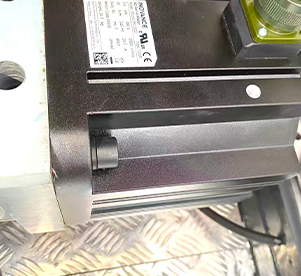

    ChuangRong：For the molding process, we have equipped a 5.5kw servo motor (Inovance/Siemens).

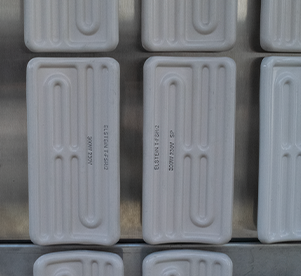

  • Heating element
    ChuangRong：We use ELSTEIN heating elements imported from Germany to reduce electricity costs during production.
  • Mold cutting with heating function
    ChuangRong：The cutting station is equipped with heating function to ensure that the mold is not easily damaged during long-term production.

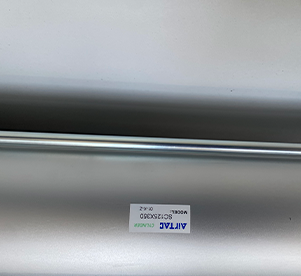

  • Cylinder
    ChuangRong：We adopt AirTAC
  • Main beam structure
    Independently developed, with a stable structure
